The AORUS GAMING BOX is modified to support long - size graphics cards.(Shared d...


The AORUS GAMING BOX is modified to support long - size graphics cards.(Shared design pattern files on the third floor)

  RSS

seanzwt11
(@seanzwt11)
Active Member
Joined: 1 year ago


Shared design pattern files on the third floor
AORUS GAMING BOX has a relatively high performance price ratio. Many people bought the suit and removed the graphics card to sell the idle box. I'm sorry, my English is poor. I sent this idea to a forum in China, and I want to send it to EGPU.IO. I hope you can give us some suggestions.


一、 24PIN interface terminal: the original interface terminal is parallel to the PCIE slot, and the long graphics card can not plug the power cord, so it needs to be changed to 24PIN 90 degrees.

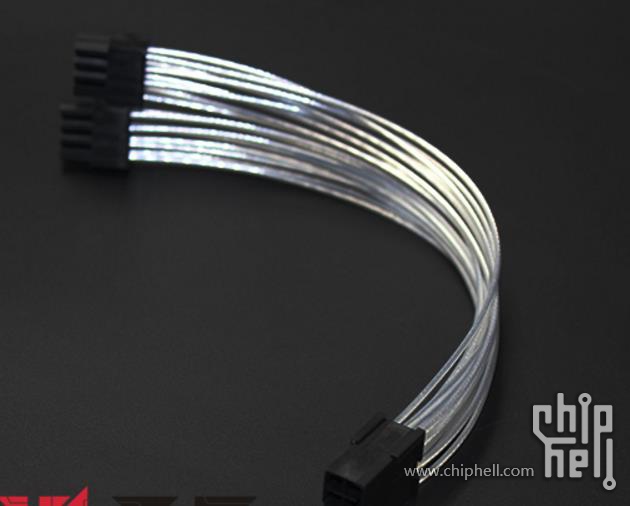

二, comes with 450W FLEX power supply, only 24pin power cord and 8PIN line each one, the length is only 10cm. You need to buy extension line and 8PIN one two.

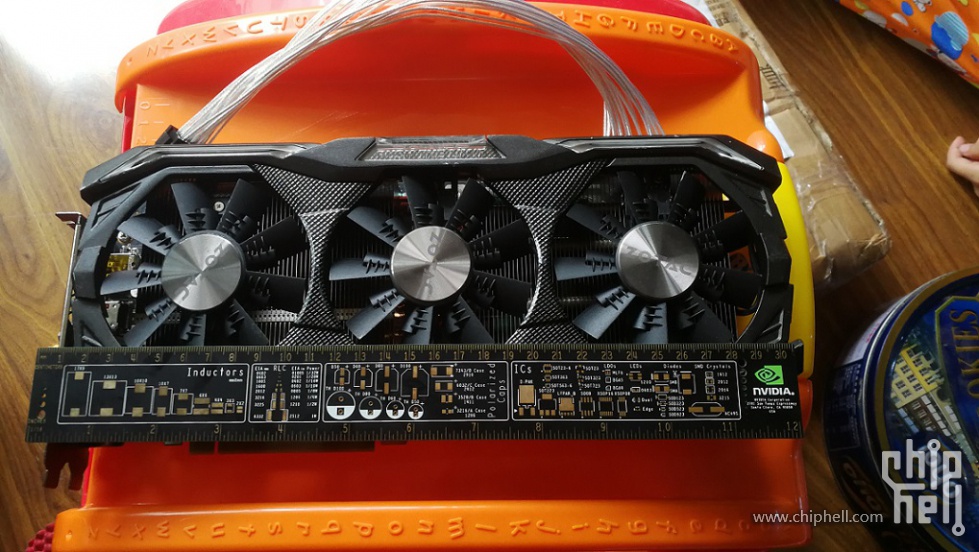

三. Large box. Size: 330*170*110mm, support graphics card: 325*150*54 (dual slot half display card).










itsage liked
ReplyQuote
jerry Kansai
(@joi_kansai)
Estimable Member
Joined: 2 years ago


Aorus gaming box is unique beside the price for performance is also because its compact size. I like the idea to fit a normal card, but it’ll  make the portability factor worse, personally I want to have a bit more room from it to fit high end mini cards like from Zotac and keep its compact size. I’m saying that because I’ve Zotac 1080Ti that sitting on a Razer Core, and the enclosure is too big for it 🙄

Razer Blade 15 2018, i7 8750H 16gb ddr4 2666mhz 1tb 970Evo
Razer Blade Stealth 12,5 2016 i7 7500U 8gb ddr3 1866mhz 500gb 970Evo
MacBook Pro 13 mid 2012 i5 3210M 12gb ddr3 1600mhz 500GB HDD
Razer Core V2 rtx 2070 Black 2040mhz Boost clock
Previous setting: rtx 2080ti Asus Turbo, rtx 2080 xc gaming, rtx 2080 Fe, Zotac Mini 1080ti, Evga 1080 FTW2 gaming.
Dual Monitor Predator XB241YU 165Hz 1440p, LG l24UD58 60Hz 4K
Portable Monitor Magedok 1440p HDR 60Hz usbA/C monitor


itsage liked
ReplyQuote
itsage
(@itsage)
Famed Member Admin
Joined: 3 years ago


This is a great modification to use the Gaming Box‘s main TBT board with more GPUs.

Best ultrabooks for eGPU use

eGPU enclosure buying guide


ReplyQuote
seanzwt11
(@seanzwt11)
Active Member
Joined: 1 year ago

Max Pham, B. van Luijk, nando4 and 3 people liked
ReplyQuote
Eightarmedpet
(@eightarmedpet)
Noble Member
Joined: 3 years ago

ReplyQuote
seanzwt11
(@seanzwt11)
Active Member
Joined: 1 year ago


Your Sonnet size is large enough to support all kinds of graphics cards. My external card box is collected on the Internet. According to the size of their accessories, use SOLIDWORKS to draw the chassis. The CNC processing on Taobao was made.


ReplyQuote
Eightarmedpet
(@eightarmedpet)
Noble Member
Joined: 3 years ago

Posted by: seanzwt11

Your Sonnet size is large enough to support all kinds of graphics cards. My external card box is collected on the Internet. According to the size of their accessories, use SOLIDWORKS to draw the chassis. The CNC processing on Taobao was made.

Cheers for the info. I want to make a bespoke smaller case for my card out of my Sonnet.

2017 13" MacBook Pro Touch Bar
GTX1060 + AKiTiO Thunder3 + Win10
GTX1070 + Sonnet Breakaway Box + Win10
GTX1070 + Razer Core V1 + Win10
Vega 56 + Razer Core V1 + macOS + Win10
Vega 56 + Mantiz Venus + macOS + W10

---

LG 5K Ultrafine flickering issue fix


ReplyQuote
irev210
(@irev210)
Trusted Member
Joined: 2 years ago


I did something similar, came out well

I used a HP board; went the other way, made it smaller instead of larger

2
1

Pending: Add my system information and expected eGPU configuration to my signature to give context to my posts


Juan C. Yunis, T430up, nando4 and 1 people liked
ReplyQuote
(@oliver_lienhard)
New Member
Joined: 1 year ago


@seanzwt11

Nice Work man. Would you mind to share your Model Data? Would be very kind.

Tanks

Pending: Add my system information and expected eGPU configuration to my signature to give context to my posts


ReplyQuote
seanzwt11
(@seanzwt11)
Active Member
Joined: 1 year ago

Posted by: Oliver Lienhard

@seanzwt11

Nice Work man. Would you mind to share your Model Data? Would be very kind.

Tanks
Shared design pattern files on the third floor


ReplyQuote
Arlaine
(@arlaine)
New Member
Joined: 1 year ago


The model files don't seem to be available anymore. If anyone has a copy of them can they upload them?
Thanks!

Aero 15X (i7-8750H, GTX 1070 Max-Q)
Akitio Node, Gigabyte GTX 1080TI Aorus Waterforce


ReplyQuote
WilliamEd
(@williamed)
New Member
Joined: 2 years ago


I was just about to post my own much less elegant build with the same idea... I originally wanted to use the 90-degree connector as well, but the connector I bought had pins that were ever so slightly larger than the holes in the PCB. I ended up just soldering the 24 pin extender directly to the PCB and hot-glued the top for reinforcement.

9pidORDhT4uBDm70dbkIUg thumb 13ba
UNADJUSTEDNONRAW thumb 13bc
UNADJUSTEDNONRAW thumb 13b8

Dell XPS 15 9550 + MSI Aorus Gaming Box GTX 1080, MacBook Pro 15 (2018) + MSI Aorus Gaming Box Vega 64 (custom)


itsage liked
ReplyQuote
StanislavM
(@stanislavm)
Active Member
Joined: 3 years ago


Hello! Can I ask you,  for re-uploadng your 3d models project?

Macbook PRO 15' 2017 i7 3.1 / RP 560 + Aourus Gaming Box / Mac OS only


ReplyQuote
guidaki
(@guidaki)
New Member
Joined: 11 months ago


Hey @seanzwt11 can you reaupload the models? They are not upload anymore.

Pending: Add my system information and expected eGPU configuration to my signature to give context to my posts


ReplyQuote
seanzwt11
(@seanzwt11)
Active Member
Joined: 1 year ago


I haven't been here for a long time. The original link is out of date. I'll renew the link and hope it will be helpful to you.
https://hawkcj4-my.sharepoint.com/:f:/g/personal/18959112709_h1_tn/EsgIwDKKe7lCuryIUETDqLIBTZBuLaJH8ajwINhn5Bky9w


ReplyQuote
guidaki
(@guidaki)
New Member
Joined: 11 months ago

Posted by: seanzwt11

I haven't been here for a long time. The original link is out of date. I'll renew the link and hope it will be helpful to you.
https://hawkcj4-my.sharepoint.com/:f:/g/personal/18959112709_h1_tn/EsgIwDKKe7lCuryIUETDqLIBTZBuLaJH8ajwINhn5Bky9w

Hey man! Thanks for the upload!!
I think you are missing 1 pice, the corners one!
If you read this can you uppload that pice? Thanks and regards!!
